¶ resource URL
- https://api.infact.no/{versionNo}/datasources
versionNo - version of API (last version: v1)
¶ Authorization
Require Bearer Authentication.
Authorization: Bearer <token>
To get a token - use Account API with Basic authorization header
`GET /v1/Account/token
¶ Global data source overview
The global data source (GDS) is a database in the NGD platform that belongs to a customer and privately contains only the customer's data.
The global data source object scheme is made based on customers' business models and often repeats customers' CRM system structure, e.g. members_db, visits, contracts, services, contract_types with different relations like by member_id, contract_id.

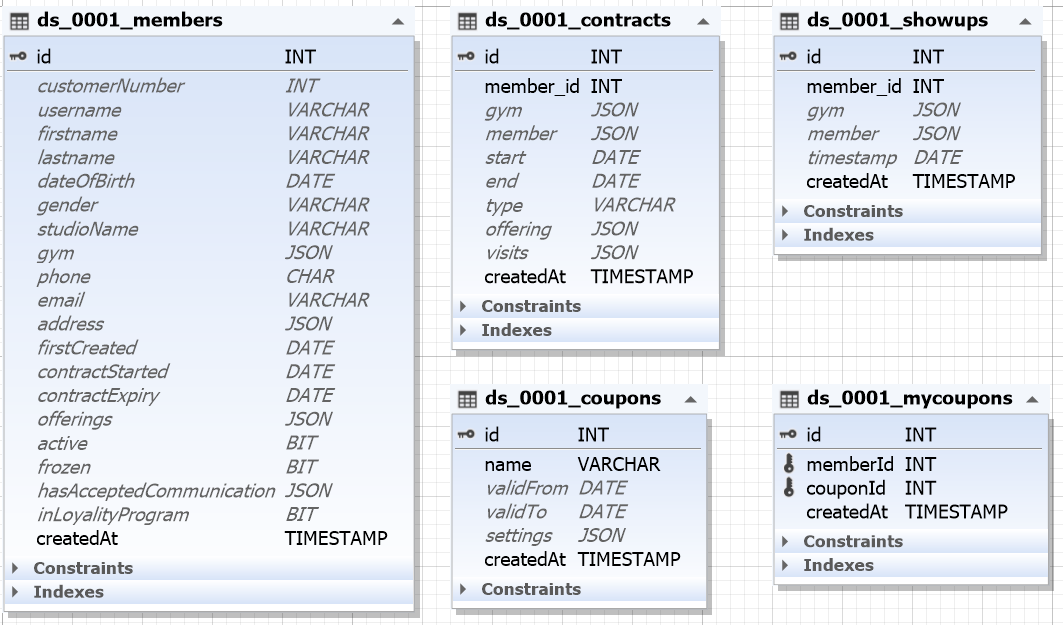

The global data source may have this structure or another:
Having data in the global data source it’s possible to use it as a source for manual campaigns, automatic repetitive campaigns (Jobs), campaigns via the API, etc. For sending campaigns to different groups of customers is possible to use an advanced Query builder that allows you to filter out subgroups of customers by flexible search criteria that are based on your database fields.
Storing customer data in global data source is vital for using an advanced Infact Survey module, since it allows us to match loyalty scores and survey answers with a specifi
c customer in the Customer DB.
Global data source scheme is created by the Infact support team.
¶ Global data source API overview
The API allows you to populate global data source by single records or record batches, get single item from DS, use Datasource Import Strategies, get global data source object scheme and create SMS/Email campaigns to groups of recipients selected by Search Queries.
¶ Methods
¶ Get datasource objects
GET /v1/datasources/{datasourceId}/objects/
¶ Response
[ { "Key": "string", "Value": "string" } ]
¶ Response example
[ { "Key": "members", "Value": "3387_2" } ]
objectName - “members” will be used as a parameter in the methods below.
¶ Get datasource object properties
GET /v1/datasources/{datasourceId}/objects/{objectName}/properties
¶ Response model
`
[
{
"Name": "string",
"Caption": "string",
"Type": "Unknown"
}
]`
¶ Response example
``
[
{
"Name": "id",
"Caption": null,
"Type": "Integer"
},
{
"Name": "firstname",
"Caption": "First name",
"Type": "ShortString"
},
{
"Name": "lastname",
"Caption": "Last name",
"Type": "ShortString"
},
{
"Name": "dateOfBirth",
"Caption": "Birthday",
"Type": "Date"
},
{
"Name": "gender",
"Caption": "Gender",
"Type": "ShortString"
},
{
"Name": "phone",
"Caption": "Phone",
"Type": "Mobile"
},
{
"Name": "email",
"Caption": "Email",
"Type": "Email"
},
{
"Name": "address",
"Caption": "Address",
"Type": "String"
},
{
"Name": "zip",
"Caption": "Zip code",
"Type": "Integer"
},
{
"Name": "city",
"Caption": "City",
"Type": "ShortString"
},
{
"Name": "createdDate",
"Caption": "Created Date",
"Type": "Date"
}
]
¶ Get datasource item
Returns data source item record by item Id.
GET /v1/datasources/{datasourceId}/objects/{objectName}/data/{itemId}
¶ Response
{
"Prop1": {},
"Prop2": {},
"Prop3": {}
}
¶ Response example
GET https://betaapi.infact.no/v1/datasources/265/objects/members/data/12
{
"id": 12,
"firstname": "Maksym 12",
"lastname": "Last name",
"dateOfBirth": null,
"gender": "Gender",
"phone": "+4791901360",
"email": "maksym@infact.no",
"address": "Address",
"zip": 1358,
"city": "Jar",
"createdDate": "2022-06-17T00:00:00"
}

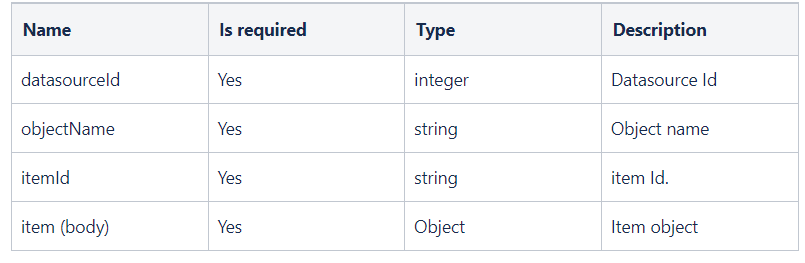

¶ Update datasource item
PUT /v1/datasources/{datasourceId}/objects/{objectName}/data/{itemId}
¶ Add datasource item
POST /v1/datasources/{datasourceId}/objects/{objectName}/data/
¶ Request example
POST https://api.infact.no/v1/datasources/265/objects/members/data
{
"id": 12,
"firstname": "First name",
"lastname": "Last name",
"dateOfBirth": "Birthday",
"gender": "Gender",
"phone": "+4791901360",
"email": "maksym@infact.no",
"address": "Address",
"zip": 1358,
"city": "Jar"
}
¶ Add datasource items (batch)
POST /v1/datasources/{datasourceId}/objects/{objectName}/data/batch
¶ example
POST https://api.infact.no/v1/datasources/265/objects/members/data
¶ Body
[
{
"id": 12,
"firstname": "Maksym 12",
"lastname": "Last name",
"dateOfBirth": "Birthday",
"gender": "Gender",
"phone": "+4791901360",
"email": "maksym@infact.no",
"address": "Address",
"zip": 1358,
"city": "Jar"
},
{
"id": 13,
"firstname": "Maksym 13",
"lastname": "Last name",
"dateOfBirth": "Birthday",
"gender": "Gender",
"phone": "+4791901360",
"email": "maksym@infact.no",
"address": "Address",
"zip": 1358,
"city": "Jar"
}
]
¶ Import data to datasource
POST /v1/datasources/{datasourceId}/objects/{objectName}/data/import/json
¶ Settings object model
{
"Items": [
{}
],
"MergeKey": "string",
"Tags": [
"string"
]
}
¶ Settings object parameters
Items: Array of objects
MergeKey: Name of field to be used as a key. List of fields that may be used as merge key provided by Infact support
Since key field is not required to be unique, it allows to change mulptiple items with same values, e..g. to add the same tag to all members in certain city, use “city” field as merge key and do not provide any other fields in the Items object
The following settings example sets "HasCityTag" tag to all members in Oslo and Bergen, and also changes zip to 12345 for members in Oslo and to 55321 to members in Bergen
{
"Items": [
{ "city": "Oslo", "zip": 12345 },
{ "city": "Bergen", "zip": 55321 }
],
"MergeKey": "string",
"Tags": [
"HasCityTag"
]
}
Tags: List df Import tags. Every tag in this dictionary will be linked to each item in Items dictionary.

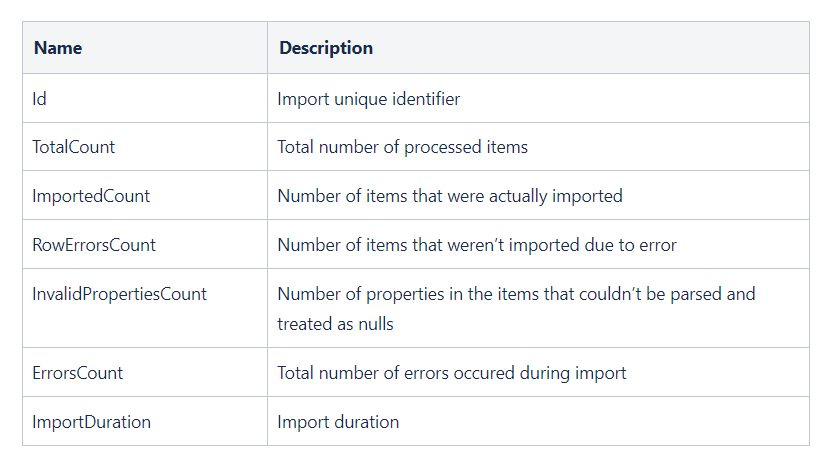

¶ Response model
{
"Id": 0,
"TotalCount": 0,
"ImportedCount": 0,
"RowErrorsCount": 0,
"InvalidPropertiesCount": 0,
"ErrorsCount": 0,
"ImportDuration": "string"
}
¶ Create campaign from data source query
POST /v1/datasources/{datasourceId}/campaign
¶ Campaign model
{
"Query": {
"ObjectName": "string",
"Name": "string",
"Count": 0,
"Filter": [
{
"Path": "string",
"Operations": [
{
"Predicate": "Equals",
"Value": {},
"MaxValue": {},
"UseOr": true
}
],
"UseOr": true,
"Filters": [
null
]
}
],
"Order": [
{
"Name": "string",
"Direction": "Asc"
}
],
"IsDictionary": true,
"SelfJoin": [
{
"Parent": "string",
"Child": "string",
"Type": "Equals"
}
],
"GroupBy": [
"string"
]
},
"ExternalId": "string",
"Type": "SMS",
"Priority": "SMS",
"Name": "string",
"Description": "string",
"ScheduleDate": "2022-06-21T16:45:07.281Z",
"AllowDuplicates": true,
"SMSTemplateId": 0,
"CountryCode": "string",
"PhoneName": "string",
"EmailName": "string",
"EmailTemplateId": 0,
"EmailSubject": "string",
"SMSBlackList": {
"Type": "None",
"BlackListIds": [
0
],
"FormIds": [
0
]
},
"EmailBlackList": {
"Type": "None",
"BlackListIds": [
0
],
"FormIds": [
0
]
}
}

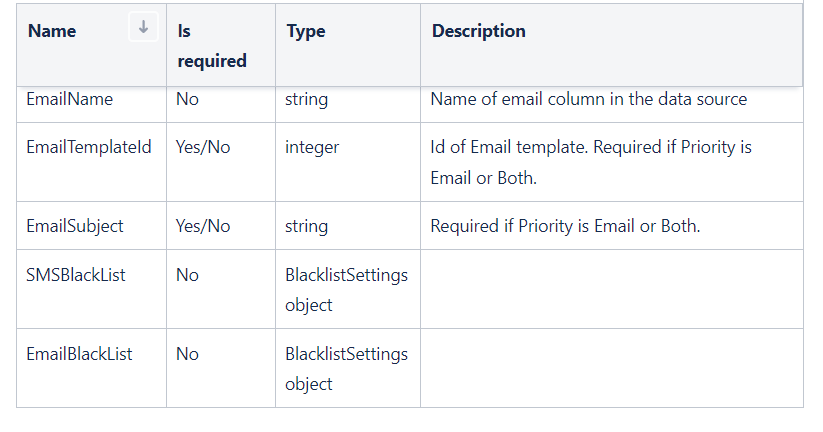

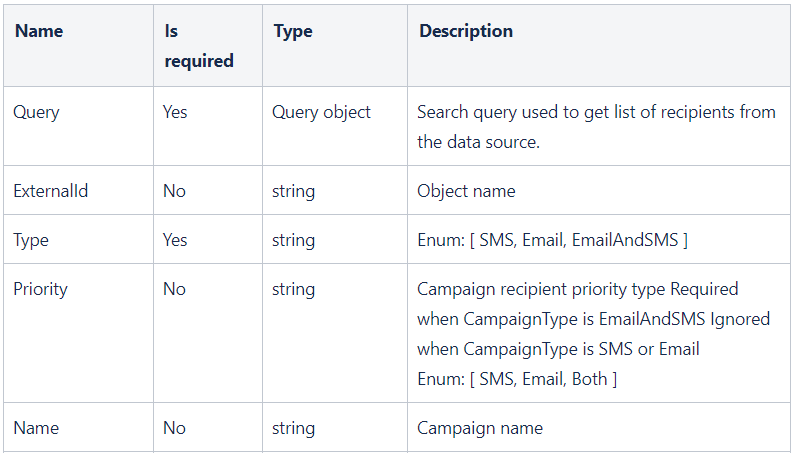

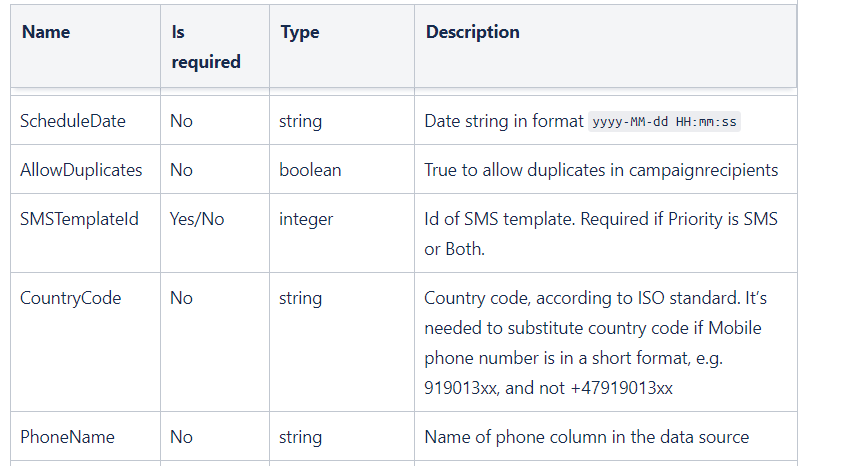

¶ Campaign model parameters

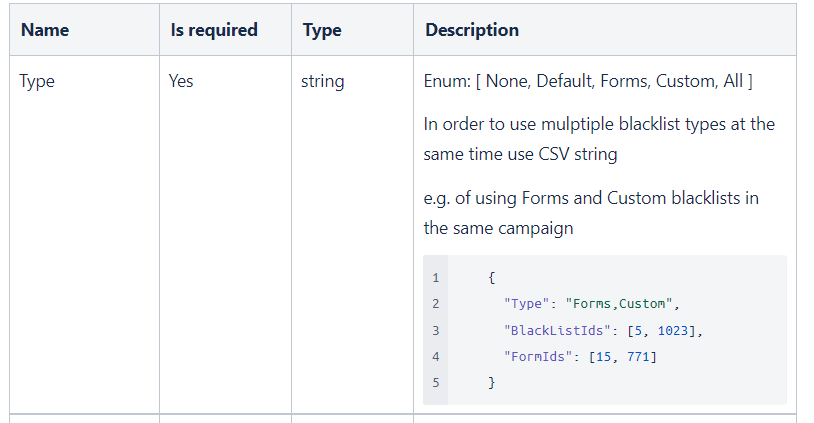

¶ CampaignBlacklistSettings model parameters

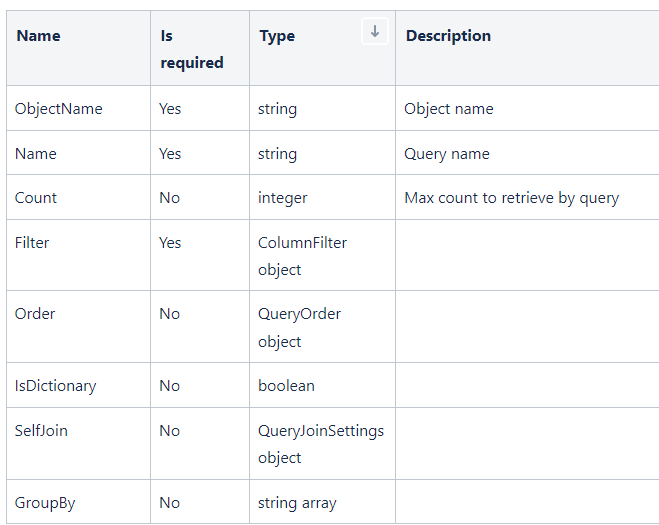

¶ Search query object parameters
¶ Search query and create campaign examples
¶ Create a campaign with recipients selected by import tag
POST https://api.infact.no/v1/datasources/265/campaign
¶ Request body model
{
"ExternalId": "externalCampaignID",
"Type": "SMS",
"Priority": "SMS",
"Name": "Camapaign from DS by query via API",
"AllowDuplicates": false,
"PhoneName": "phone",
"CountryCode": "NO",
"ScheduleDate": "2022-06-17 16:10:18",
"SMSTemplateId": 2,
"Query": {
"ObjectName": "members",
"Name": "name of query search",
"Filter": [
{
"Path": "__tags.tag",
"Operations": [
{
"Predicate": "In",
"Value": ["tag5"],
"MaxValue": null,
"UseOr": false
}
],
"UseOr": false
}
]
}
}
¶ Search query example
"Query": {
"ObjectName": "members",
"Name": "name of query search",
"Filter": [
{
"Path": "__tags.tag",
"Operations": [
{
"Predicate": "In",
"Value": ["tag5"],
"MaxValue": null,
"UseOr": false
}
],
"UseOr": false
}
]
}
¶ Import to data source with record merge
In this example, we will import two sets of recipients to the existing data source. The data source scheme is shown below.
[
{
"Name": "id",
"Caption": null,
"Type": "Integer"
},
{
"Name": "firstname",
"Caption": "First name",
"Type": "ShortString"
},
{
"Name": "lastname",
"Caption": "Last name",
"Type": "ShortString"
},
{
"Name": "dateOfBirth",
"Caption": "Birthday",
"Type": "Date"
},
{
"Name": "gender",
"Caption": "Gender",
"Type": "ShortString"
},
{
"Name": "phone",
"Caption": "Phone",
"Type": "Mobile"
},
{
"Name": "email",
"Caption": "Email",
"Type": "Email"
},
{
"Name": "address",
"Caption": "Address",
"Type": "String"
},
{
"Name": "zip",
"Caption": "Zip code",
"Type": "Integer"
},
{
"Name": "city",
"Caption": "City",
"Type": "ShortString"
},
{
"Name": "createdDate",
"Caption": "Created Date",
"Type": "Date"
}
]
¶ Request and objects to import
POST /v1/datasources/{datasourceId}/objects/{objectName}/data/import/json
{
"Items": [
{
"id": 16,
"firstname": "Maksym 16",
"lastname": "Yakovliev",
"dateOfBirth": "1983-01-01",
"gender": "Gender",
"phone": "+380952579743",
"email": "maksym@infact.no",
"address": "Address",
"zip": 1358,
"city": "Jar"
},
{
"id": 17,
"firstname": "User 17",
"lastname": "lastname",
"dateOfBirth": "1989-01-01",
"gender": "Gender",
"email": "post@example.com",
"address": "Address",
"zip": 1364,
"city": "Jar"
}
],
"MergeKey": "phone",
"Tags": [
"ImportTag7"
]
}
¶ Response
{
"Id": 19866,
"TotalCount": 2,
"ImportedCount": 1,
"RowErrorsCount": 0,
"InvalidPropertiesCount": 0,
"ErrorsCount": 0,
"ImportDuration": "00:00:01.8505410"
}
¶ Results in the DB
The record with Id 16 was updated.
The record with Id 17 was added.

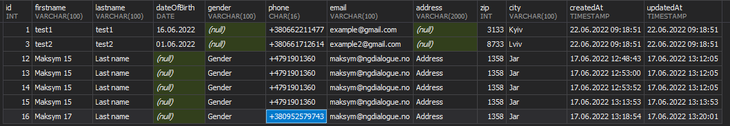

- before the import

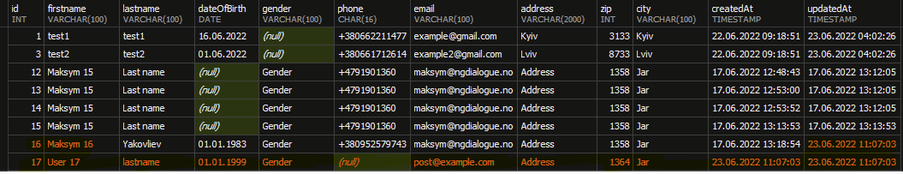

- after the import
